E410NiMo-16
sanzhong
E410NiMo-16
spool - tube
China
AWS A5.4 E410NiMo-16
international standard
ISO, CE, DB
accept ODM also
1kg / 5kg / 12.5kg / 250kg
7-15 Days
1000 KGS
1000 Tons per Month
0.8mm / 0.9mm / 1.0mm / 1.2mm / 1.6mm / 2.0mm / 2.5mm / 3.2mm
025 / 030 / 035 / 040 / 045 / 0.030
| Quantity: | |
|---|---|
Standard：AWS A 5.4 E410NiMo-16 | Chemical Composition % | |||||||||
C | Cr | Ni | Mo | Mn | Si | P | S | Cu | V | |
Grade E410NiMo-16 | ≤0.06 | 11.0 ~ 12.5 | 4.0 ~ 5.0 | 0.4 ~ 0.7 | ≤1.00 | ≤0.90 | ≤0.04 | ≤0.03 | ≤0.75 | ------ |
E410NiMo-16 stainless steel welding electrode.pdf
Type | Spool (MIG) | |||||
Specification | 0.8、1.0、1.2、1.6、2.0、2.4、3.2 | Pack | S100/1kg S200/5kg S270,S300/15kg-20kg | |||
Mechanical Properties | Tensile Strength / MPa | A (%) | ||||
≥ 760 | ≥ 15 | |||||
The E410NiMo-16 Welding Wire is the most widely used in the welding of important structures such as shipbuilding.
The "best" E410NiMo-16 welding wire is one that strictly conforms to the AWS A5.4 specification requirements. Key requirements are based on the chemical composition of the deposited weld metal, its mechanical properties after proper heat treatment, and critical welding procedures.
Preheat and Interpass Temperature: A preheat and interpass temperature of greater than 150°C (300°F) is strongly recommended to prevent cracking in this martensitic stainless steel.
Critical PWHT Warning: It is critical not to exceed 620°C (1150°F) during this treatment, as higher temperatures can cause the weld metal to harden, making it more brittle and prone to cracking.
TIG Rods: Typically cut to lengths (e.g., 1000 mm) and sold in plastic containers or polythene bags of weights like 5 kg .
MIG Wire: Supplied on spools or in metallic rings, often in 25 kg packages .
The primary identification is its official classification under the AWS A5.4 standard as E410NiMo-16. This classification also has equivalents in other
international standards, such as:
UNS: W41016
ISO 3581-A: E 13 4
GB/T (China): E410NiMo-16
Some manufacturers also have their own trade names or series designations. For example, Lincoln Electric sells a version under the Excalibur® 410NiMo-16
brand,and other common commercial designations include G202NiMo and CHK232.
E410NiMo-16 welding wire is available in packaging specifically designed to protect the material and suit different welding processes. The main forms are spooled wire for MIG (GMAW) welding and cut-length rods for TIG (GTAW) welding.
(1) Spooled WireMIG/GMAW welding Typically 12.5 kg (approx. 27.6 lbs) or 15 kg per spool
(2) Cut-Length RodsTIG/GTAW welding Usually packaged in boxes of 5 kg

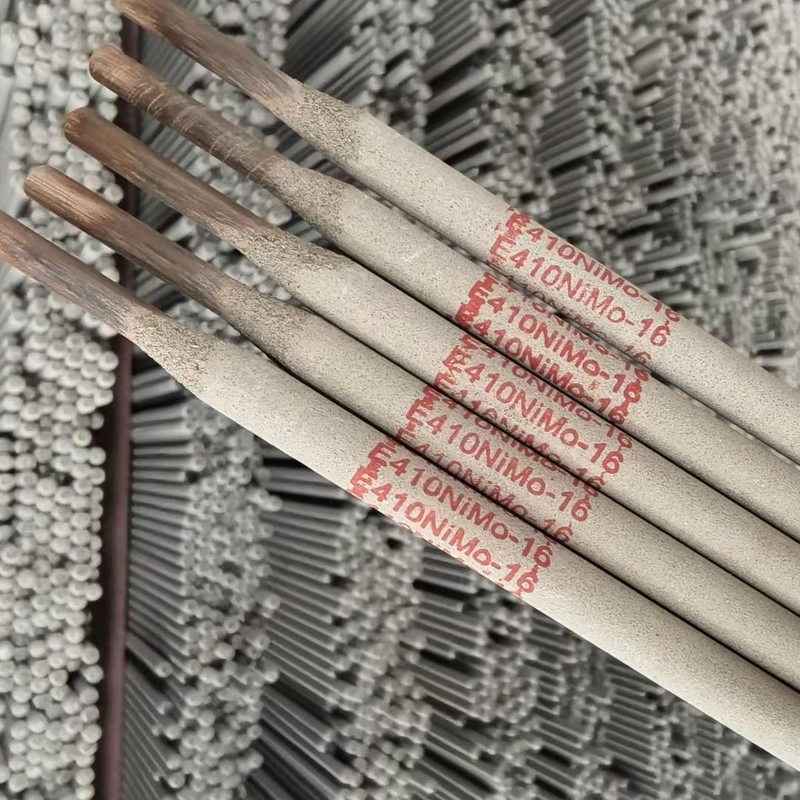

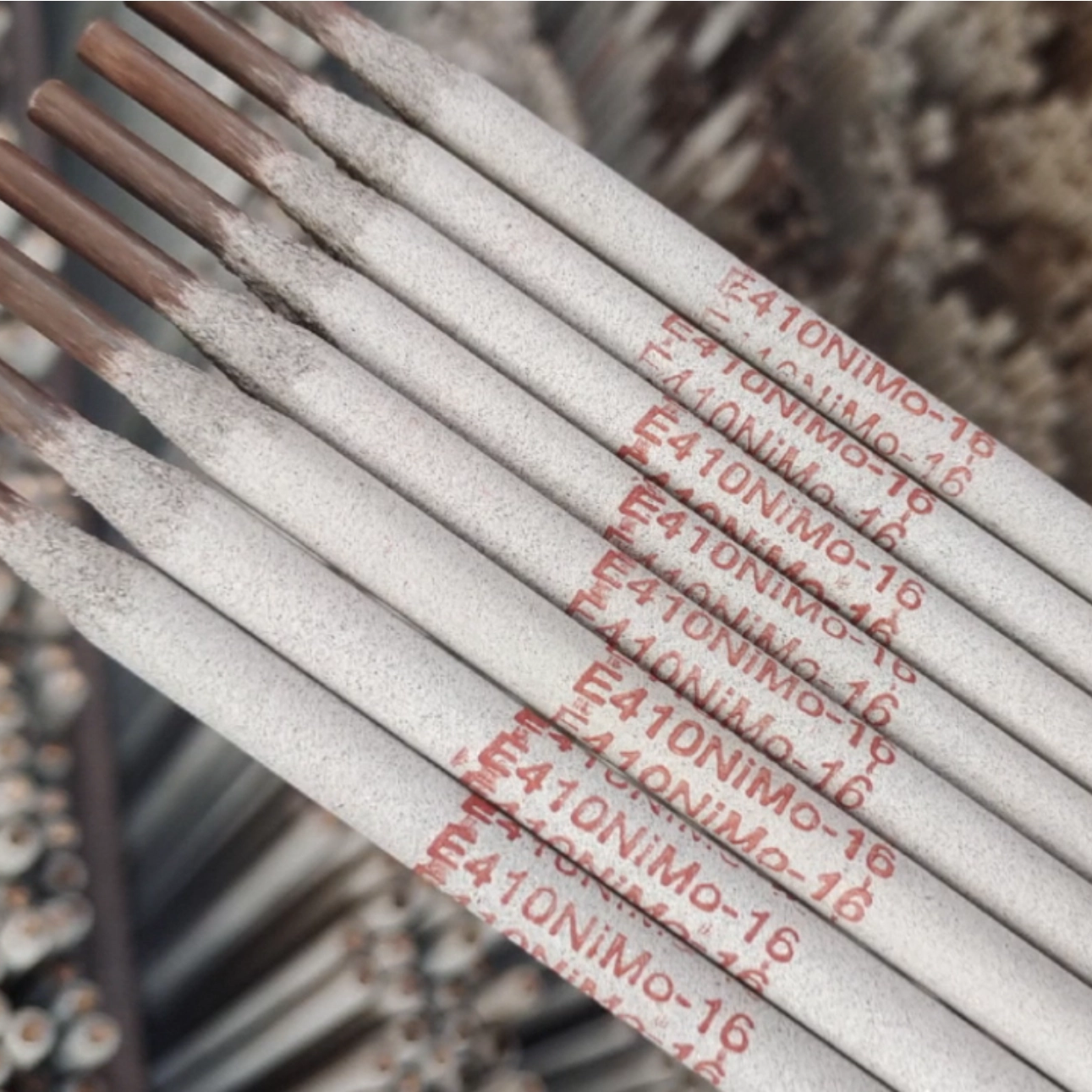

Product Type: It is a covered electrode for manual metal arc welding (SMAW/MMAW).
Packaging: Sold in various weights, commonly 5 lb (2.3 kg) or 10 lb (4.5 kg) containers, which can include Easy Open Cans or cardboard boxes.
Diameter and Length: Available in multiple diameters (e.g., 3/32", 1/8", 5/32") and lengths (e.g., 12", 14") for different welding applications.
Protect yourself and others. Read and understand this label of self shielded flux cored wire. FUMES and GASES can be hazardous to your health.ARC RAYS can injure eyes and burn skin. flux core mig wire ELECTRIC SHOCK can KILL.
gas shielded flux cored wire,Before use, read and understand the manufacturer's instructions, Material Safety Data Sheets (MSDSs), and your employer's safety practices.
stainless steel flux core wire types have too many kinds ,Keep your head out of the fumes.Use enough ventilation, exhaust at the arc, or both, to keep fumes and gases away from your breathing zone and the general area.Wear correct eye, ear, and body protection.
flux wire welder,Do not touch live electrical parts.See American National Standard, ANSI 249.1, Safety in Welding.
E410NiMo-16 Welding Wire 10 famous brand are which factory?
1:sanzhong, 2:giant, 3:bohler, 4:rural king, 5:lincoln, 6:hyundai, 7:blue demon, 8:esab, 9:Oxford, 10:golden bridge
E410NiMo-16 Welding Wire supplier and factories or wholesale locates in such countries like?
China,America,Brazil,England,Russia,Poland,India,Pakistan,NewZealand,Korea,Australia,Dubai,Turkey,Indonesia,UAE.
How to choose a suitable E410NiMo-16 Welding Wire?or what type of filler wire is best for E410NiMo-16 Welding Wire?
There isn't really a "best" E410NiMo-16 welding wire in general; the right choice depends entirely on your specific project. You select this
electrode because your application needs a material with good toughness, corrosion resistance, and the ability to handle high stress.
The "best" one for you will be a respected brand that meets the AWS A5.4 E410NiMo-16 standard and fits your job's requirements.
When to Choose E410NiMo-16
E410NiMo-16 is not a general-purpose electrode. It's a specialized tool for specific materials and demanding conditions.
The primary application is welding martensitic stainless steels, especially:
ASTM CA6NM castings: This is its most common and specific use, including welding components like water turbine runners,
pump impellers, and valve bodies.
Similar alloys: It is also suitable for welding 410, 410S, and 405 base metals.
You might also choose it for surfacing and overlays: The electrode is ideal for depositing a corrosion and wear-resistant layer on mild
and low alloy steels. This is a common application in industrial settings.
How to Select the Right One
When you're ready to purchase, focus on these points to make the right choice:
1. Confirm Critical Application & Approvals
Different industries have different requirements. A weld for a hydroelectric turbine will have stricter standards than a general repair job.
High-Stakes Industries: For power generation or high-pressure piping, look for products with explicit approvals for these services.
Major manufacturers like Lincoln Electric (Excalibur® 410NiMo-16) and ESAB (OK 68.17) are established, reputable choices in these sectors.
General Fabrication: For less critical work on pumps and valves, many reliable products are available, often marketed under trade
names like G202NiMo, TS-410NM, or CHK232.
2. Check the Certification Label
Always verify the product meets the AWS A5.4 E410NiMo-16 classification. This is the fundamental standard guaranteeing its composition
and properties.
3. Pick the Correct Size for Your Job
Like many electrodes, E410NiMo-16 is sold in different diameters. Your choice depends on the metal thickness and the welding position.
Common Sizes: Typical sizes include 3/32" (2.4 mm), 1/8" (3.2 mm), 5/32" (4.0 mm), and 3/16" (4.8 mm).
Welding Parameters: Check the manufacturer's recommended current range for the size you choose. For example, a 1/8" electrode often
runs between 75-110 amps (DC+).
Important Process Notes
To get the intended "best" performance, you must follow the required welding procedures, particularly preheating and post-weld heat
treatment (PWHT):
Preheat: A preheat and interpass temperature above 150°C (300°F) is strongly recommended to prevent cracking.
PWHT: The weld must be heat-treated after welding. The standard treatment is heating to 595-620°C (1100-1150°F) for one hour, then air cooling.
Critical Warning: Never exceed 620°C (1150°F) during PWHT, as higher temperatures can actually harden the weld metal and make it brittle.
