ERNiCrFe-2
sanzhong
ERNiCrFe-2
spool - tube
China
AWS A 5.11-AWS A 5.14 ERNiCrFe-2
international standard
ISO, CE, DB
accept ODM also
1kg / 5kg / 12.5kg / 250kg
7-15 Days
1000 KGS
1000 Tons per Month
0.8mm / 0.9mm / 1.0mm / 1.2mm / 1.6mm / 2.0mm / 2.5mm / 3.2mm
025 / 030 / 035 / 040 / 045 / 0.030
| Quantity: | |
|---|---|
Standard： AWS A 5.11 AWS A 5.14 ENiCrFe-2 | Chemical Composition % | |||||||||||||
C | Si | Mn | P | S | Cr | Ni | Nb+Ta | Fe | Cu | Mo | Ti | Al | Rest | |
Grade ENiCrFe-2 | ≤0.08 | ≤0.3 | ≤0.3 | ≤0.015 | ≤0.015 | 17~21 | 50~55 | 4.8~5.5 | ≤24.0 | ≤0.3 | 2.8~3.3 | 0.7~1.1 | 0.2~0.8 | ≤0.50 |
ENiCrFe-2 nickel alloy welding wire-welding electrode.pdf
Type | Spool (MIG) | |||||
Specification | 0.8、1.0、1.2、1.6、2.0、2.4、3.2 | Pack | S100/1kg S200/5kg S270,S300/15kg-20kg | |||
Mechanical Properties | Tensile Strength / MPa | A (%) | ||||
≥ 520 | ||||||
The ERNiCrFe-2 Welding Wire is the most widely used in the welding of important structures such as shipbuilding.
Based on AWS A5.14 specifications and manufacturer data, the best ERNiCrFe-2 welding wire requirements are defined by its chemical composition, mechanical properties, and quality conformance.
Minimum Tensile Strength: The weld metal must achieve at least 550 MPa (80 ksi).
Minimum Elongation: ≥ 30% in 2 inches (51mm).
Typical Applications: The wire is specified for welding high-strength Inconel alloys 718, 706, and X-750, often in demanding sectors such as aerospace and power generation.
"NiCrFe" Designation: This core of the name indicates the primary composition family: a Nickel-Chromium-Iron alloy.
Spooled Wire: Typically on spools in diameters from 0.8 mm to 1.2 mm, designed for automated or semi-automatic welding (MIG/GMAW).
Straight Rods: Available as cut-to-length rods from 1.2 mm to 3.2 mm, intended for manual TIG welding (GTAW).
ASME SFA-A5.14: An additional certification often required for pressure vessel and nuclear applications.
Traceable Test Reports: Manufacturers typically provide "mill test reports" or certificates showing the actual wire composition, which can be used to verify its identity against the standard.
ERNiCrFe-2 welding wire is available in packaging specifically designed to protect the material and suit different welding processes. The main forms are spooled wire for MIG (GMAW) welding and cut-length rods for TIG (GTAW) welding.
(1) Spooled WireMIG/GMAW welding Typically 12.5 kg (approx. 27.6 lbs) or 15 kg per spool
(2) Cut-Length RodsTIG/GTAW welding Usually packaged in boxes of 5 kg
Protect yourself and others. Read and understand this label of self shielded flux cored wire. FUMES and GASES can be hazardous to your health.ARC RAYS can injure eyes and burn skin. flux core mig wire ELECTRIC SHOCK can KILL.
gas shielded flux cored wire,Before use, read and understand the manufacturer's instructions, Material Safety Data Sheets (MSDSs), and your employer's safety practices.
stainless steel flux core wire types have too many kinds ,Keep your head out of the fumes.Use enough ventilation, exhaust at the arc, or both, to keep fumes and gases away from your breathing zone and the general area.Wear correct eye, ear, and body protection.
flux wire welder,Do not touch live electrical parts.See American National Standard, ANSI 249.1, Safety in Welding.
ERNiCrFe-2 Welding Wire 10 famous brand are which factory?
1:sanzhong, 2:giant, 3:bohler, 4:rural king, 5:lincoln, 6:hyundai, 7:blue demon, 8:esab, 9:Oxford, 10:golden bridge
ERNiCrFe-2 Welding Wire supplier and factories or wholesale locates in such countries like?
China,America,Brazil,England,Russia,Poland,India,Pakistan,NewZealand,Korea,Australia,Dubai,Turkey,Indonesia,UAE.
How to choose a suitable ERNiCrFe-2 Welding Wire?or what type of filler wire is best for ERNiCrFe-2 Welding Wire?
Matching High-Strength Alloys: It is specifically designed for welding high-strength, precipitation-hardenable nickel alloys. Its primary and best use is for welding base metals like Inconel 718, Inconel 706, and X-750. Its composition (with elements like Nb, Ti, and Al) is formulated to provide the strength needed to match these alloys.
Ultra-High Strength is Required: The filler metal is chosen to achieve high weld metal strength, especially when the welded assembly will undergo a post-weld aging heat treatment. Typical weld metal tensile strength requirements start at a minimum of 550 MPa, with some products listing a much higher minimum of 1138 MPa (165,000 psi).
Welding Dissimilar Metals for High-Temperature Service: ENiCrFe-2 is an excellent choice for welding dissimilar joints, particularly between chrome-moly (Cr/Mo) steels and stainless steels. This is especially true if the joint will be exposed to cyclic thermal loads and service temperatures above ~700°F (371°C). The nickel-based weld metal acts as a "hinge" to absorb thermal expansion stress and better resists carbon migration, a common issue in high-temp dissimilar welds.
Chemical Composition: Always verify the wire meets the AWS A5.14 specification for ERNiCrFe-2. Key elements include Nickel (50.0-55.0%), Chromium (17.0-21.0%), Niobium+Tantalum (4.75-5.50%), and Molybdenum (2.80-3.30%), with low limits on Carbon, Silicon, and Manganese.
Certification: For critical applications (e.g., pressure vessels, nuclear), require conformance to ASME SFA-A5.14 and request mill test reports or certificates of actual wire chemistry to ensure traceability and quality.
Welding Inconel 718, 706, or X-750 with post-weld aging.ERNiCrFe-2Provides matching high-temperature strength and cracking resistance.
Welding dissimilar Cr/Mo to stainless steel with high service temp (>700°F) and thermal cycling.ERNiCrFe-2Minimizes thermal stress and
carbon migration issues.
Welding Inconel 600, 601, or 800 series alloys.ERNiCr-3More appropriate alloy match with lower risk of cracking.
Welding 304 or 316 stainless steel.309L or 312Standard, cost-effective choice; using ERNiCrFe-2 can cause cracking.
ERNiCrFe-2 welding wire has several direct equivalent grades and similar products, both under the AWS specification and from other international standards and manufacturers. These include:
AWS A5.14 ERNiFeCr-2 (UNS N07718): This is the primary, direct classification for this welding wire. It is essentially the same product under a slightly different naming convention within the AWS A5.14 specification.
ASME SFA-5.14 ERNiFeCr-2: This is the equivalent classification recognized by the ASME Boiler and Pressure Vessel Code, ensuring its suitability for pressure vessel applications.
AMS 5832: This is the Aerospace Material Specification number for this filler metal, confirming its use in critical aerospace components.

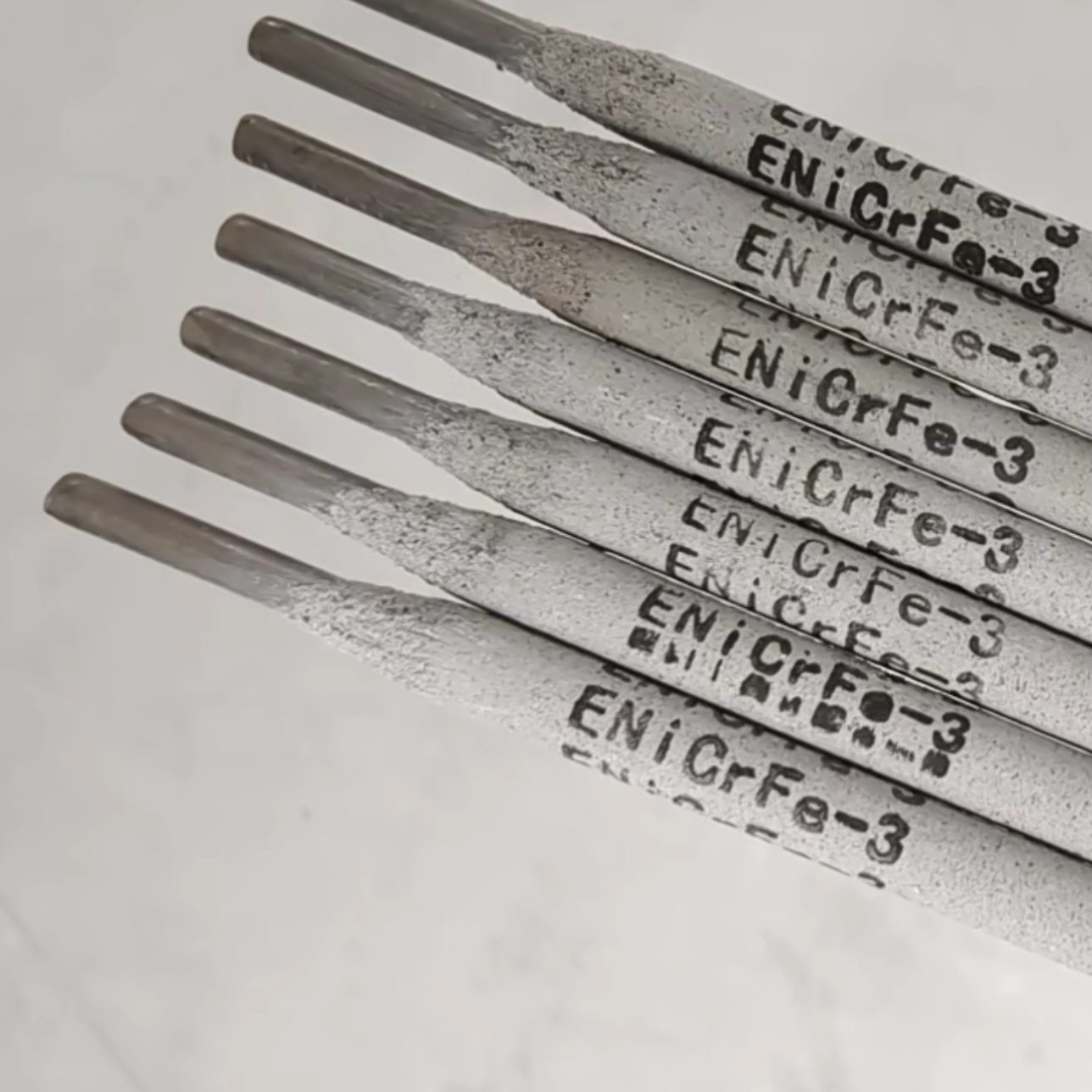

ENiCrFe-3Contains significantly more Manganese (5.0-9.5% vs. 1.0-3.5%), making it less prone to microfissures. However, it has a lower maximum service
temperature (900°F vs. 1500°F).Similar applications, especially where weld cracking is a concern, but at lower operating temperatures.
ENiCrFe-7Designed for welding INCONEL 690 alloy. Has a much higher Chromium content (28.0-31.5%) for exceptional resistance to stress corrosion cracking.
Welding INCONEL 690 and other applications requiring superior corrosion resistance.
ERNiCrMo-3A Ni-Cr-Mo alloy (like INCONEL 625) used for welding similar alloys, often chosen for its excellent corrosion resistance and high strength across
a wide temperature range.High-strength, high-corrosion-resistance applications and dissimilar welding.
UTP 7015 Mo: A stick electrode from voestalpine Böhler Welding that meets the AWS ENiCrFe-2 classification.
Ni357: A common grade designation for this filler metal in the Chinese (GB/T) standard.
DIN EL-NiCr16FeMn: The equivalent classification under the German (DIN) standard.
ERNiCrFe-2 Welding Wire Classification. Electrodes of this classification are self-shielded, operate on DCEN, and have a smooth spray-type transfer. They are general purpose electrodes for single- and multiple-pass welding
in all positions. Their use is generally not recommended on thicknesses greater than 3/4 in [19 mm]. The electrode manufacturer should be consulted for specific recommendations.
